Also available with VESA 75/100 Quick Release Adapter Plate

2 x 300 mm Horizontal Medical Combo Arm for monitor, keyboard and mouse, mounting on Dräger Primus / Julian / Cato / Fabius GS / Zeus anesthesia machine

This 2 x 300 mm Horizontal Combo Arm allows the LCD screen to be perfectly fixed, oriented and adjusted and supports the keyboard and mouse.

It is coated with an anti-microbial agent offering hygiene and cleaning down to the last detail. Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Integrated cable entry

Mounting on Dräger Primus / Julian Cato / Fabius GS / Zeus anesthesia machine. Lateral adapter L 127 mm or L 320 mm included,

length to specify when ordering.

* This Medical Arm simply slides into the rail of the Dräger machine adapter

and then adjusts to the desired fixed height.

* It does not have height adjustment, but has three horizontal axes of rotation.

* The head of this arm complies with the standard for mounting screens:

VESA MIS-D 75 mm and 100 mm. Tilt head.

* Compatible with screens whose weight does not exceed 12,5 Kg.

* Touch screen stability.

* Screen tilt: 10°.

* Screen rotation: 120° to the right, 120° to the left.

* Arm rotation: 90° to the right, 90° to the left.

* Total length 908 mm

* Keyboard and Mouse Stand: 500 x 200 mm

* Compatible with multimedia terminals (TMM)

* Color RAL 7024 (Graphite Grey) and White

* All our medical arms are in conformity:

CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years

Note: This arm can also be installed on one of our medical columns or trolleys.

Holder for barcode hand shower

Mounting on Wall Rail

Part Number: 999.174

Support pour 2 Bouteilles de Gaz médicaux Montage sur rail mural vertical

Din Rail 10 x 25 mm.

Length of 500 mm

Mounting on Wall Rail

Part Number: 999.171

Din Rail 10 x 25 mm.

Length of 300 mm

Mounting on Wall Rail

Part Number: 999.169

Din Rail 10 x 25 mm. Longueur de 300 mm sur rail mural vertical

Din Rail 10 x 25 mm. Longueur de 400 mm sur rail mural vertical

Part Number: 999.170

Universal Stand Adjustable 35-57 mm mounting on Wall Rail

Part Number: 999.163

Support Universel Ajustable 35-57 mm sur rail mural vertical à glissière

Universal Stand Adjustable 48-63 mm mounting on Wall Rail

Part Number: 999.164

Support Universel Ajustable 48-63 mm sur rail mural vertical à glissière

CPU holder Adjustable 130-170 mm mounting on Wall Rail

Part Number: 999.161

Support CPU Ajustable 130-170 mm montage sur rail mural vertical à glissière

CPU holder Adjustable 170-215 mm mounting on Wall Rail

Part Number: 999.162

Support CPU Ajustable 170-215 mm montage sur rail mural vertical à glissière

CPU holder Adjustable

60-100 mm

mounting on Wall Rail

Part Number: 999.159

Support CPU Ajustable 60-100 mm montage sur rail mural vertical à

CPU holder Adjustable

85-150 mm

mounting on Wall Rail

Part Number: 999.160

Support CPU Ajustable 85-150 mm montage sur rail mural vertical à glissière

Triple cable hooks, mounting on Wall Rail

Part Number: 999.157

Triple Crochets pour câble montage sur rail mural vertical à glissière

CPU holder Adjustable

45-70 mm

mounting on Wall Rail

Part Number: 999.158

Support CPU Ajustable 45-70 mm montage sur rail mural vertical à glissière

Small Service Basket Mounting on Wall Rail

Part Number: 999.155

PetitPanier de service sur rail mural vertical à glissière

Double cable hooks Mounting on Wall Rail

Part Number: 999.156

Double Crochets pour câble montage sur rail mural vertical à glissière

Large Service Basket Mounting on Wall Rail

Part Number: 999.154

Grand Panier de service sur rail mural vertical à glissière

Optional Accessories :

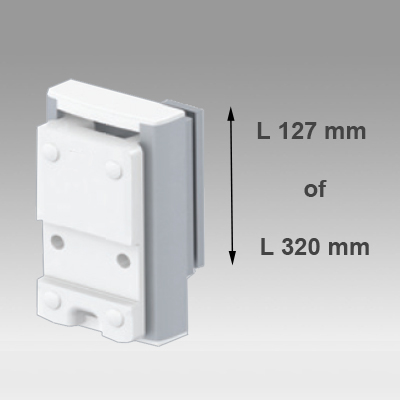

Dräger Primus/ Julian/ Cato/ Fabius GS/ Zeus Side Adapter

Part Number: 994.145

Adaptateur Latéral Dräger Primus/ Julian/ Cato/ Fabius GS/ Zeus

Mandatory Accessories :

Anti-bacterial properties:

IT medical arms are now designed with Microban antibacterial protection,

a revolutionary treatment that guarantees optimal hygiene. IT medical arms integrate Microban and other antibacterial agents into all medical products. It inhibits the growth of bacteria of all types. This is not a surface treatment.

It is 100% in the totality of the product.

It does not alter the physico-mechanical properties of the medical arm lift system. Simulations over 30 years show that 100% of the antibacterial properties are maintained.

All medical articulated arms incorporate Microban. Microban is the world's leading provider of anti-bacterial solutions. It has been successfully applied for more than 35 years in a wide range of products used in the hospital, construction and food industries.
