240 mm Horizontal Medical Arm for Philips MP2/X2 monitoring series, mounting on Din Rail Vertical

This 240 mm Horizontal Arm allows the monitor to be perfectly fixed, oriented and adjusted. It is coated with an anti-microbial agent offering hygiene and cleaning down to the last detail. Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Integrated cable channel

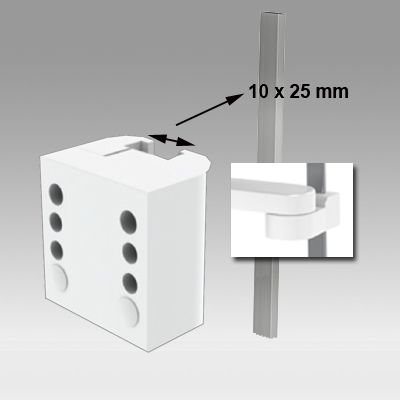

* Mounting on Din rail Vertical 10 x 25 mm adapter included (10 x 25 mm)

* This Philips MP2/X2 monitor medical arm simply attaches to the Din rail,
   then adjusts to the rail and pinches in the din rail
* It has no height adjustment.

* The head of this arm complies with the Philips Intellivue MP2/X2 Series
   monitor mounting standard. Rotary head.

* Compatible with Philips MP2/X2 Series monitors whose weight
   does not exceed 18 Kg.

* Philips monitor rotation: 115° right, 115° left.

* Arm rotation: 105° to the right, 105° to the left.

* Total length 402 mm

* Compatible with Philips Intellivue MP2/X2 Series Monitors

* Colour RAL 7024 (Graphite grey) and White

* All our medical arms are in conformity:
  CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years

Note: Please specify Philips Intellivue monitor type when ordering.
Bar code shower holder

Part Number: 998.169
Support pour douchette à code barre
Holder Power supply Mounting on
25 mm fixed pole

Part Number: 998.165
Support Alimentation Electrique Montage sur Pole Fixe de 25 mm
35-57 mm Adjustable Universal Holder Mounted on
25 mm fixed pole

Part Number: 998.163
Ajustable 35-57 mm Montage sur Pole Fixe de 25 mm
48-63 mm Adjustable Universal Holder Mounted on
25 mm fixed pole

Part Number: 998.164
Support Universel Ajustable 48-63 mm Montage sur Pole Fixe de 25 mm
Triple cable hooks Mounting on
25 mm fixed pole

Part Number: 998.157
Triple Crochets pour câble Montage sur Pole Fixe de 25 mm
Small Service Basket Mounted on
25 mm fixed pole

Part Number: 998.155
Petit Panier de service Montage sur Pole Fixe de 25 mm
Double cable hooks Mounting on
25 mm fixed pole

Part Number: 998.156
Double Crochets pour câble Montage sur Pole Fixe de 25 mm
Large Service Basket Mounted on
25 mm fixed pole

Part Number: 998.154
Grand Panier de service Montage sur Pole Fixe de 25 mm
Optional Accessories for Philips Intellivue Series and FMS 25mm Bottom Pole
30 cm Bottom Pole for Philips Intellivue Series Swing Arms

Part Number: 988.101
Pole Inférieur de 30 cm pour bras pivotants Philips Intellivue Series
15 cm Bottom Pole for Philips Intellivue Series Swing Arms

Part Number: 988.100
Pole Inférieur de 15 cm pour bras pivotants Philips Intellivue Series
Optional Accessories for Philips Intellivue Series and FMS Swivel Arms
Anti-bacterial properties:

IT medical arms are now designed with Microban antibacterial protection,
a revolutionary treatment that guarantees optimal hygiene. IT medical arms integrate Microban and other antibacterial agents into all medical products. It inhibits the growth of bacteria of all types. This is not a surface treatment.
It is 100% in the totality of the product.
It does not alter the physico-mechanical properties of the medical arm lift system. Simulations over 30 years show that 100% of the antibacterial properties are maintained.
All medical articulated arms incorporate Microban. Microban is the world's leading provider of anti-bacterial solutions. It has been successfully applied for more than 35 years in a wide range of products used in the hospital, construction and food industries
All our Catalogues PDF
Monitoring Philips Intellivue MP2/X2 Series

Part Number: 988.804 -

240 mm Horizontal Medical Arm for Philips MP2/X2, Din Rail Vertical Mounting

18 Kg
Select the desired view
Click on the photo to enlarge
Display compatibility: Philips Intellivue MP2/X2
Supported Weight: 18 Kg
Technical Sheet
Product sheet
988.804
-
-
Graphite Grey and White
000.988.804
Warranty: 5 years
