Holder for barcode hand shower

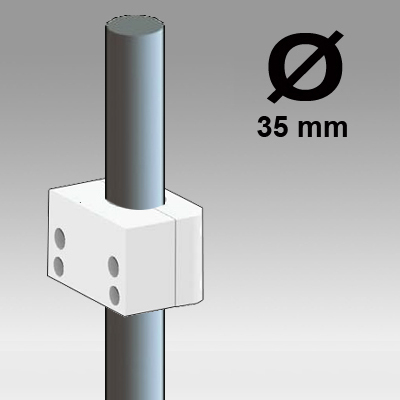

Mounting on Pole 35 mm

Part Number: 978.169

Electrical power supply box

255 x 115 x 85 mm

Mounting on Pole 35 mm

Part Number: 978.167

Electrical power supply box

255 x 165 x 85 mm

Mounting on Pole 35 mm

Part Number: 978.168

Power supply stand

Mounting on Pole 35 mm

Part Number: 978.165

Electrical power supply box

255 x 96 x 65 mm

Mounting on Pole 35 mm

Part Number: 978.166

Universal Stand Adjustable 35-57 mm

mounting on Pole 35 mm

Part Number: 978.163

Universal Stand Adjustable 48-63 mm

mounting on Pole 35 mm

Part Number: 978.164

CPU holder Adjustable 170-215 mm

mounting on Pole 35 mm

Part Number: 978.162

300 mm Horizontal Medical Arm for Dräger Infinity® Monitor M500 / M540, 35 mm Fixed Pole Mount

This 300 mm Horizontal Arm allows the monitor to be perfectly fixed, oriented and adjusted. It is covered with an anti-microbial agent that provides hygiene and cleaning down to the last detail. Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Integrated cable channel

* Mounting on 35 mm fixed pole, fixing ring included.

* This 300 mm Horizontal Arm simply slips on the 35 mm pole and then adjust

to the desired height and fixed. He doesn't own height adjustment.

* The head of this arm complies with the monitor mounting standard

Dräger Infinity M500 / M540

* Monitor tilt: 50° down and 100° up

* Monitor rotation: 110° to the right, 110° to the left.

* Arm rotation: 105° to the right, 105° to the left.

* Total length 371 mm

* Double hook for cable

* Colour RAL 7024 (Graphite grey) and White

* All our medical arms are in conformity:

CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years

Note: This arm can also be installed on one of our columns or medical trolleys

30 cm Bottom Pole for swivel monitor arms

Part Number: 988.101

Pole Inférieur de 30 cm pour bras pivotants Philips Intellivue Series

15 cm Bottom Pole for swivel monitor arms

Part Number: 988.100

Pole Inférieur de 15 cm pour bras pivotants Philips Intellivue Series

If you don't find

the right accessory for you,

do not hesitate to contact us,

we will help you

in your search

CPU holder Adjustable

130-170 mm

mounting on Pole 35 mm

Part Number: 978.161

CPU holder Adjustable

60-100 mm

mounting on Pole 35 mm

Part Number: 978.159

CPU holder Adjustable

85-150 mm

mounting on Pole 35 mm

Part Number: 978.160

Triple cable hooks, mounting on Pole 35 mm

Part Number: 978.157

CPU holder Adjustable

45-70 mm

mounting on Pole 35 mm

Part Number: 978.158

Small Service Basket Mounting on Pole 35 mm

Part Number: 978.155

Double cable hooks Mounting on Pole 35 mm

Part Number: 978.156

Large Service Basket Mounting on Pole 35 mm

Part Number: 978.154

Drawer with Keyboard Holder

Mounting on Pole 35 mm

Part Number: 978.151

Single drawer

Mounting on Pole 35 mm

Part Number: 978.149

Din Rail 10 x 25 mm.

Length 300 mm.

Part Number: 999.150

Optional Accessories:

Anti-bacterial properties:

IT medical arms are now designed with Microban antibacterial protection,

a revolutionary treatment that guarantees optimal hygiene. IT medical arms integrate Microban and other antibacterial agents into all medical products. It inhibits the growth of bacteria of all types. This is not a surface treatment.

It is 100% in the totality of the product.

It does not alter the physico-mechanical properties of the medical arm lift system. Simulations over 30 years show that 100% of the antibacterial properties are maintained.

All medical articulated arms incorporate Microban. Microban is the world's leading provider of anti-bacterial solutions. It has been successfully applied for more than 35 years in a wide range of products used in the hospital, construction and food industries.
