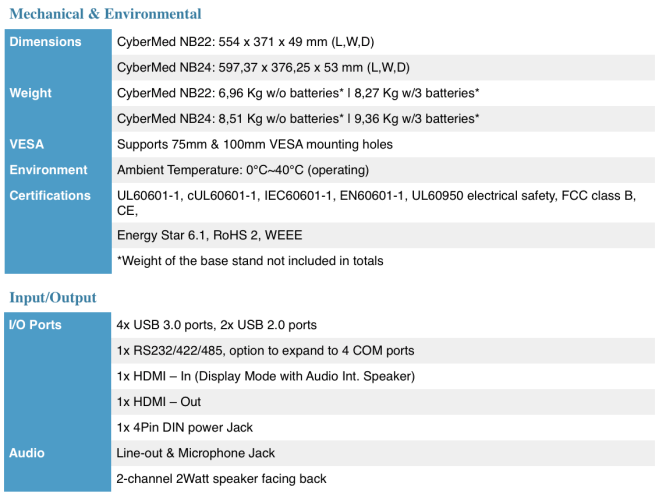

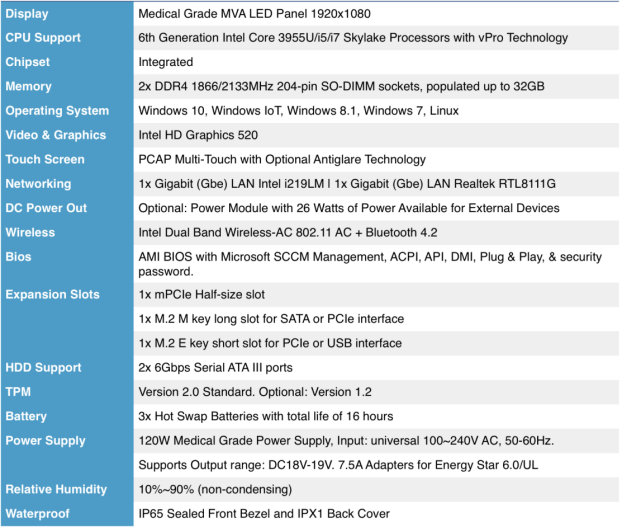

Technical Specifications

Main features of the system

* High Resolution Panel

* Three Hot Swap Batteries

* PCAP Multi-Touch Display

* IP65 Rated

* UL/cUL/IEC60601-1 Certified

* Antimicrobial Housing

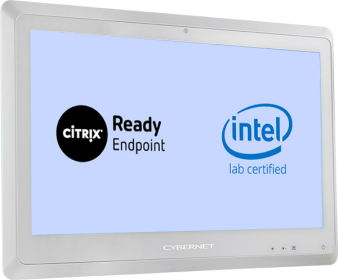

Citrix and Intel Certified

Citrix Ready Endpoint Certification is another extra step taken by Cybernet to ensure customers of our commitment to full compatibility and compliance with all major EHR & EMR applications that run through a Citrix Virtual Environment.

In order to receive this certification, this unit has been submitted to Citrix and put through a rigorous testing process in their labs.

In addition, our devices have been certified by Intel labs to the highest and most stringent protocols in design and reliability testing including thermal shock and thermal recycling.

What does all this mean to you? Peace of mind.

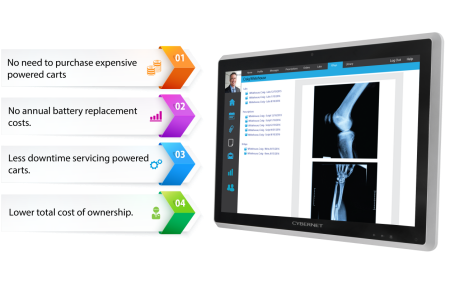

Save Money on Operating Costs

Powered carts are expensive. The initial cost is often 5x that of a non-powered cart. The cost of replacing the cart battery is very expensive, too. Factor in downtime due to servicing them and the TCO is extremely high.

Compared to the TCO of powered carts, the cost of operation and maintenance of our medical cart computers is much less. Just not having to purchase the powered cart alone is a significant savings.

The hot-swap batteries are durable and safe - they last and let your staff get their job done without distractions, while you no longer spend money on expensive powered carts and their replacement batteries.

Built with Fanless Cooling Technology

Because these medical cart computers are used in such close proximity to patients, preventing the spread of germs and other harmful microbes is vital. In addition to being anti-microbial and being IP65 rated for easy disinfection, both the CyberMed NB24 and NB22 are engineered with fanless cooling technology.

By using lower power consumption components and fewer internal moving parts in our medical computers, Cybernet is able to utilize fanless cooling technology. By eliminating the fan we eliminate a common source of nosocomial infections (infections spread in a hospital). Traditional fans not only suck in air, but also blow it out. This makes the spread of disease much more likely, especially when nurses are taking a computer from room to room while doing their rounds.

Expand Functionality with Additional Batteries

While the batteries for the CyberMed NB24 and CyberMed NB22 can be recharged by plugging the unit into a wall outlet, in order to enjoy the full capabilities of this hot swap computer you should invest in our multi-battery charging station.

Charge up to three batteries simultaneously in the charging station. It takes approximately four hours to charge all three batteries. Keep batteries charged and ready and you never have to worry about running out of power. Simply replace a depleted battery from the CyberMed NB22 or CyberMed NB24 with a charged one; put the depleted battery in the charger and you are "good to go" in less than a minute.

Power your Peripherals Directly from the Medical Computer

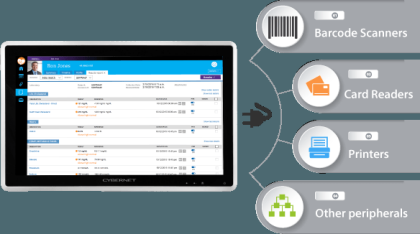

Our medical cart computers are each designed to be a standalone, mobile all-in-one computer that can power itself AND directly power peripherals such as barcode printers, scanners, card readers and more. Both models offer up to 40 watts of total power through a convenient DC power output jack on the I/O coastline.

The CyberMed NB22 or CyberMed NB24 can provide a single 5V/9V/12V/20V/24V DC power output with a maximum of 40 watts peak, 26 watts sustained.

Enjoy the freedom of using the cart, computer, and peripherals without ever having to plug in.

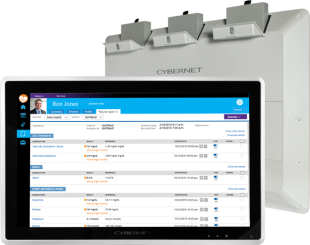

3 Hot Swap Batteries for Maximum Efficiency

Computers on wheels have been a staple in healthcare for years. Hot swap battery technology allows you to pair these devices with a non-powered cart without losing any functionality. The three hot swap batteries can provide up to 21 hours of continuous uptime.

That's almost more than two full 12 hour shifts! When the batteries start to deplete, simply replace them on the fly with a fully charged battery for near 24/7 operability.

Wheel the cart from room to room to do patient charting or share test results without even needing to plug the unit or the cart into a wall outlet to charge. These features increase productivity and lighter carts are much easier for nurses to maneuver reducing strain.

22" All in One fanless medical computer with three hot-swappable batteries, ideal for non-energy powered medical carts

These fanless All in One medical computers with hot-swappable batteries are designed for use with unpowered medical carts. Hot-swappable batteries provide up to 21 hours of operation time on a single charge

* Antimicrobial Housing stands up to Chemical Disinfection

These medical cart computers have an antimicrobial housing, an IP65 rated

sealed front bezel and an IPX1 back cover making it easy to clean and

disinfect.

* Global UL/cUL 60601-1 and IEC60601-1 Medical Certifications

Medical grade, and certified to be safe for near patient use. These computers

were designed from the ground up to meet global medical safety standards.

* 6th Gen Intel Core CPU

Our medical cart computers offer the Skylake 6th generation Intel Core

3955U/i5/i7 processor series.

This CPU has up to 2.5x greater performance and 3x the battery life of most

computers.
